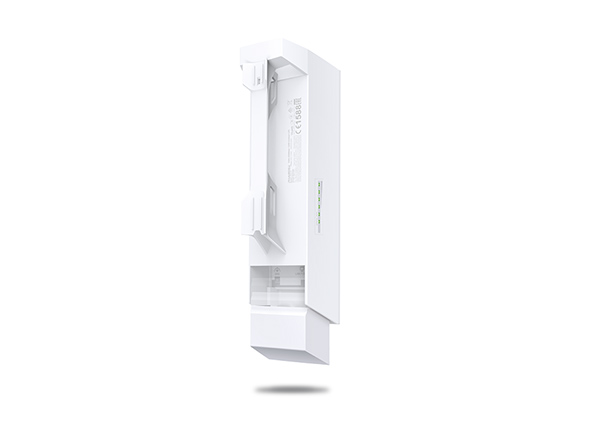

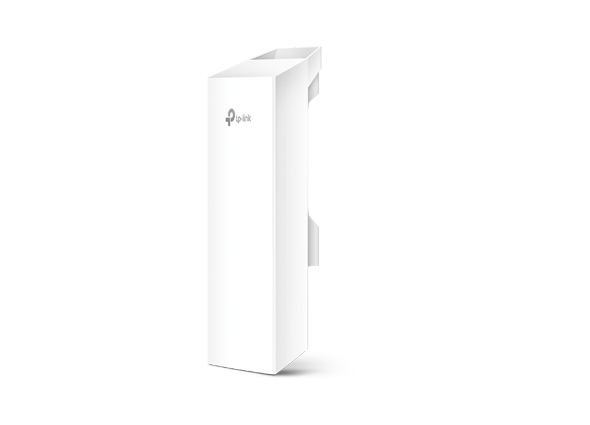

TP-Link CPE210 V3: Cost-Effective Outdoor Wi-Fi Solution The TP-Link CPE210 V3 offers a budget-friendly yet efficient solution for outdoor wireless networking. Designed for point-to-point and point-to-multipoint applications, this CPE delivers reliable connectivity over distances of up to 5 kilometers. Key Features: Reliable Performance: The 9dBi dual-polarized directional MIMO antenna ensures strong signal reception and transmission, even in challenging outdoor environments. Flexible Deployment: Operate as an AP, Client, AP Router, or AP Client Router to suit your specific network needs. Efficient Power Management: Adjustable transmission power from 0 to 25dBm/500mW allows you to optimize power consumption based on distance and environment. Advanced Technology: TP-Link CPE210 V3 MAXtream TDMA technology enhances throughput, capacity, and latency, providing a smoother user experience. Centralized Management: Easily manage multiple CPE devices with the Pharos Control system for efficient network administration. Weatherproof Design: Built to withstand harsh outdoor conditions, ensuring reliable operation in various climates. Trust Iken Computers for your networking needs. We offer the TP-Link CPE210 V3 and expert support to help you achieve optimal performance. HARDWARE FEATURES Processor Qualcomm Atheros 560MHz CPU, MIPS 74Kc Memory 64MB DDR2 RAM, 8MB Flash Interface 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1 Grounding Terminal 1 Reset Button Power Supply Passive Power over Ethernet via LAN0 ( 4,5pins; -7,8pins) Voltage range: 16-27VDC Power Consumption 5 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. Dimensions ( W x D x H ) 224 x 79 x 60 mm Antenna Type Built-in 9dBi 2×2 Dual-polarized Directional Antenna Beam Width: 65° (H-Plane) / 40° (E-Plane) Note: For more details, please refer to datasheet Protection 15KV ESD Protection 6KV Lightning Protection Enclosure Outdoor ASA stabilized plastic material IPX5 waterproof Certification WIRELESS FEATURES Wireless Standards IEEE 802.11b/g/n (with Pharos MAXtream disabled) Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled) Wireless Speeds Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic) Frequency 2.4~2.483GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. Transmission Power 25dBm/316mw (Adjustable power by 1dBm) Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used. SOFTWARE FEATURES Wireless Configurations Pharos MAXtream TDMA Technology 802.11b/g/n Modes Selectable Channel Width: 5/10/20/40MHz Automatic Channel Selection Transmission Power Control Dynamic Frequency Selection (DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging (AP mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: > Beacon Interval/RTS Threshold/Fragmentation >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia Management Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System Log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server System Tools Wireless Signal Quality Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute System-level Optimizations Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog POE ADAPTER FEATURES Dimensions(W x D x H) 85.8×43.9×29.7 mm Interfaces 1 AC Jack with Earth Ground 1 10/100Mbps Shielded Ethernet Port (Power Data) 1 10/100Mbps Shielded Ethernet Port (Data) Button Remote Reset Button Power Status LEDs Green Input 100-240VAC, 50/60Hz Output • V2.0: 24VDC, 0.6A Max • V3.0: 24VDC, 0.5A Max • V3.20: 24VDC, 0.25A Max 4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) Efficiency >80% Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark OTHERS Certification CE, FCC, RoHS, IPX5 Package Contents Outdoor Wireless CPE 24V 0.6A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. Environment Operating Temperature: -40℃~70℃ (-40℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing Show More Show Less
