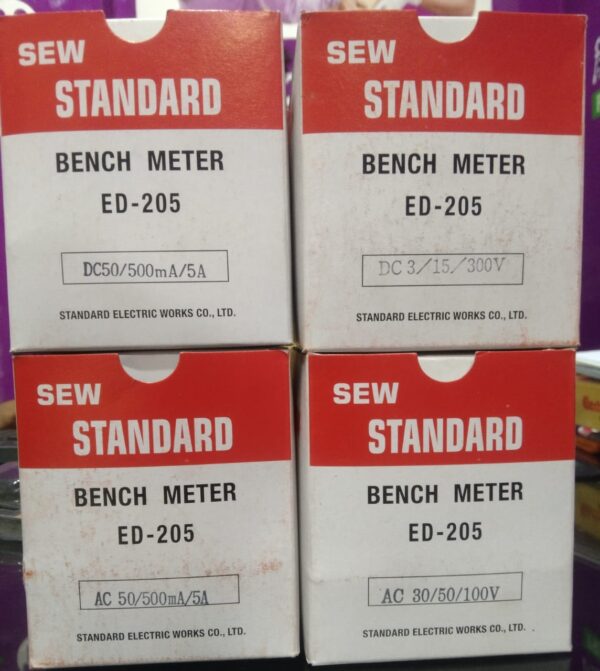

Description Analog DC Ammeter ED-205 Taiwan Analog DC ammeter or bench meter ED-205 (DC50/500mA/5A) Specifications Specification Details Product Name Analog DC Ammeter ED-205 Taiwan Model Number ED-205 Country of Origin Taiwan Type Analog DC Ammeter / Bench Meter Measurement Type DC Current (Direct Current) Measurement Ranges DC 50mA / 500mA / 5A (3 ranges) Range 1 0-50mA DC Range 2 0-500mA DC Range 3 0-5A DC Display Type Analog needle/pointer display Scale Clear graduated scale with mirror strip Accuracy Class ±2.5% of full scale Movement Type D’Arsonval moving coil mechanism Polarity Center zero or positive scale Mounting Type Panel mount / Bench meter Panel Cutout Standard rectangular (approx. 88 × 88mm) Dial Size Approximately 80-100mm Range Selection Rotary switch selector Overload Protection Built-in protection circuit Input Terminals Screw terminals or binding posts Terminal Type Positive ( ) and Negative (-) marked Case Material High-impact ABS plastic or bakelite Meter Face Anti-glare white background, black markings Operating Temperature 0°C to 50°C Storage Temperature -20°C to 60°C Humidity Up to 85% RH (non-condensing) Dimensions Approx. 90 × 90 × 70 mm Weight Approximately 250-350g Standards Compliance IEC 60051, IEC 61010, Taiwan CNS standards Application Laboratory, workshop, battery testing, DC circuits Calibration Factory calibrated Quality Certification Taiwan quality certified ADVANCE SCIENCE & TECHNOLOGY ZONE E-mail: [email protected], Website: WWW.ASTZBD.COM Cell: 88 01329100999 88 01329100998
